APPLICATION

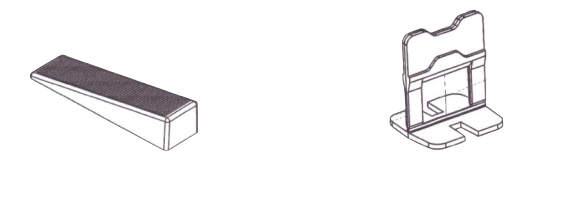

System with three accessories:

This system allows to level the pavement avoiding differences of level in the joint and an equal pressure in all the pavement. The base of the spacer is placed under the tile supported on the wings of the spacer, this will give us the distance of the joint (1, 2 and 3mm). The wedge is then inserted into the hole in the spacer and the pliers are pressed until the two ceramic pieces are fully leveled. Once the grip material has hardened or set, we will break the spacer with a blow on one of the sides, recovering the wedge for other applications.


Basic Y-Level

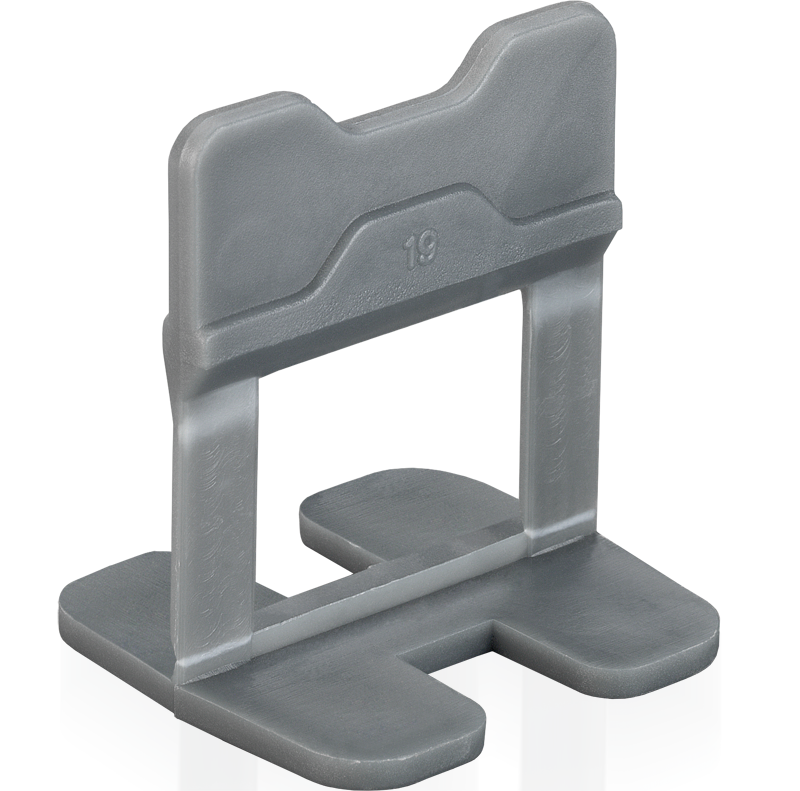

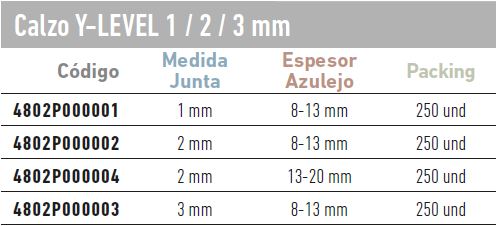

BASIC Y-LEVEL

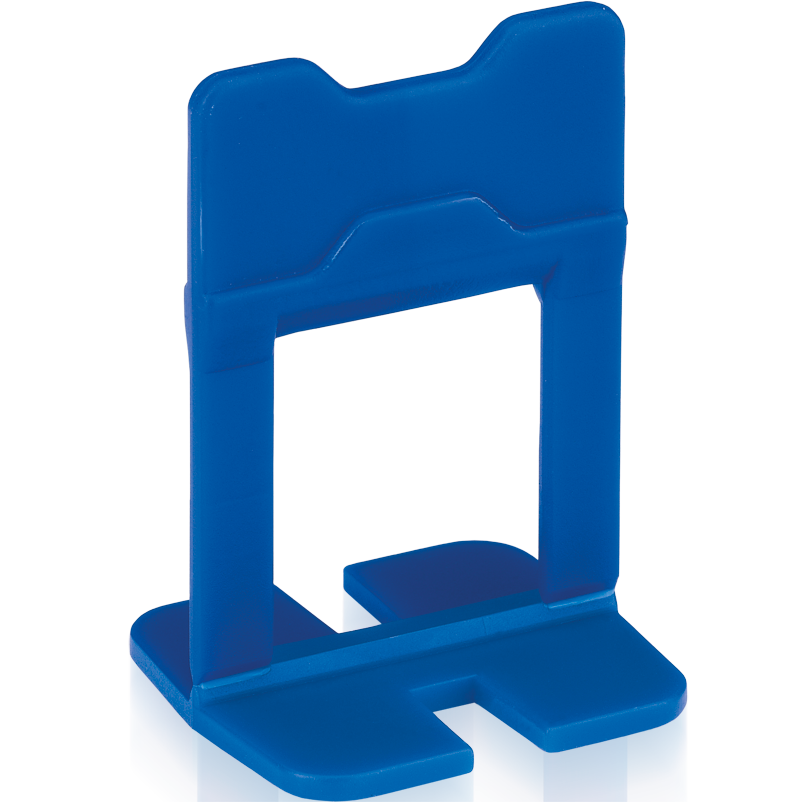

BASIC Y-LEVEL H 20

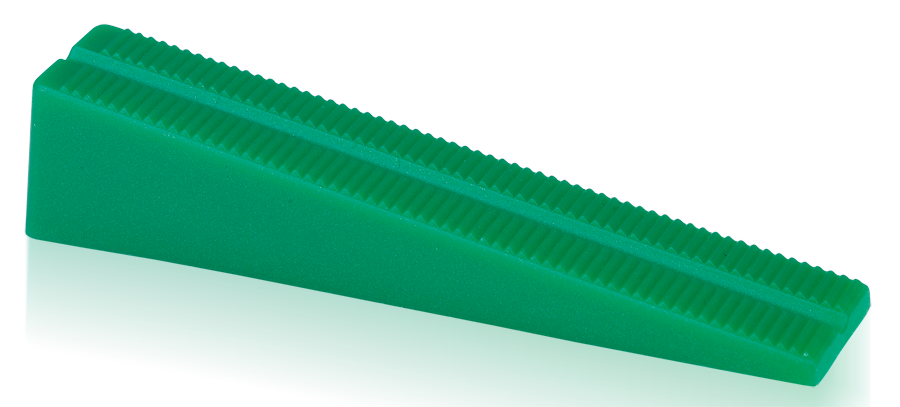

Wedgue

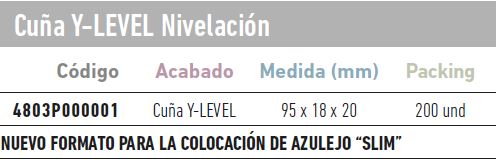

WEDGUE Y-LEVEL

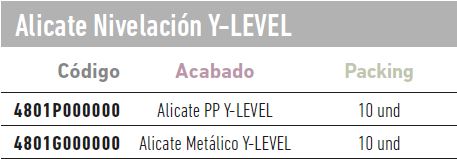

Pliers


METAL PLIERS

PLASTIC PLIERS

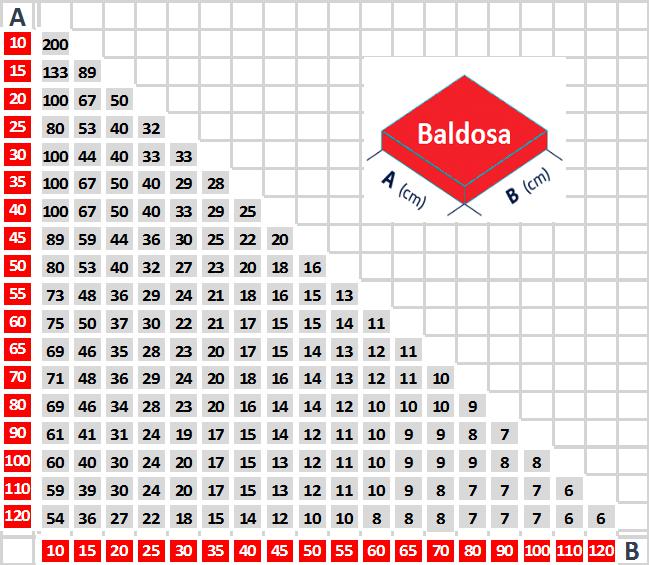

NÚMERO APROXIMADO DE CALZOS NECESARIOS SEGÚN FORMATO BALDOSA
